| รายละเอียดสินค้า |
สอบถามข้อมูลเพิ่มเติม
ติดต่อได้ที่
โทร. คุณ นริศา(ไลลา) 065-727-7235
ไลน์. 065-727-7235
อีเมลล์ : Sale3.flowautomech@gmail.com
__________________________________________-

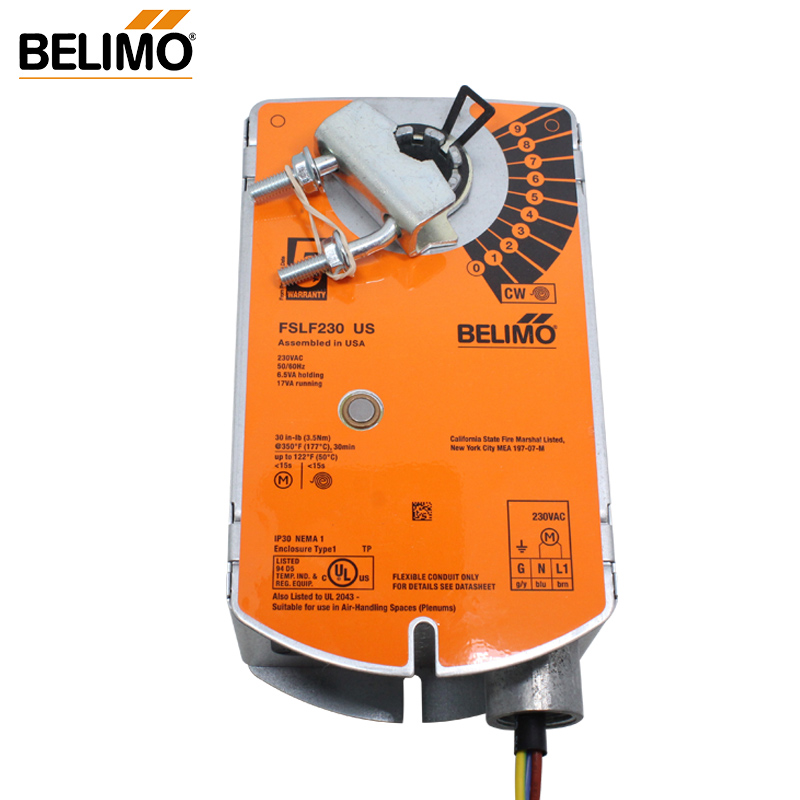

- Belimo Fire and Smoke Spring Return Actuator FSLF230 US
- Belimo RB220-FRU230-3 Fan Coil Valves Open/Close & floating control (AC 230V)
- BELIMO NM230ASR Damper actuator for operating air control dampers in ventilation and air-conditioning systems for building servi
- BELIMO SM230ASR Modulating damper actuator for adjusting air dampers in ventilation and air-conditioning systems for building se
- BELIMO GM230A Damper actuator for operating air control dampers in ventilation Torque 40Nm
- BELIMO 8Nm AC100 240V NMD230A Damper actuator for adjusting air dampers in ventilation
- Switzerland BELIMO Mechanical Fail-Safe 4NM Damper Actuator LF24-SR
- Switzerland BELIMO Mechanical Fail-Safe Damper Actuator NF24A-SR
- Belimo 40Nm GM24A-SR Modulating damper actuator for HAVC withPosition feedback

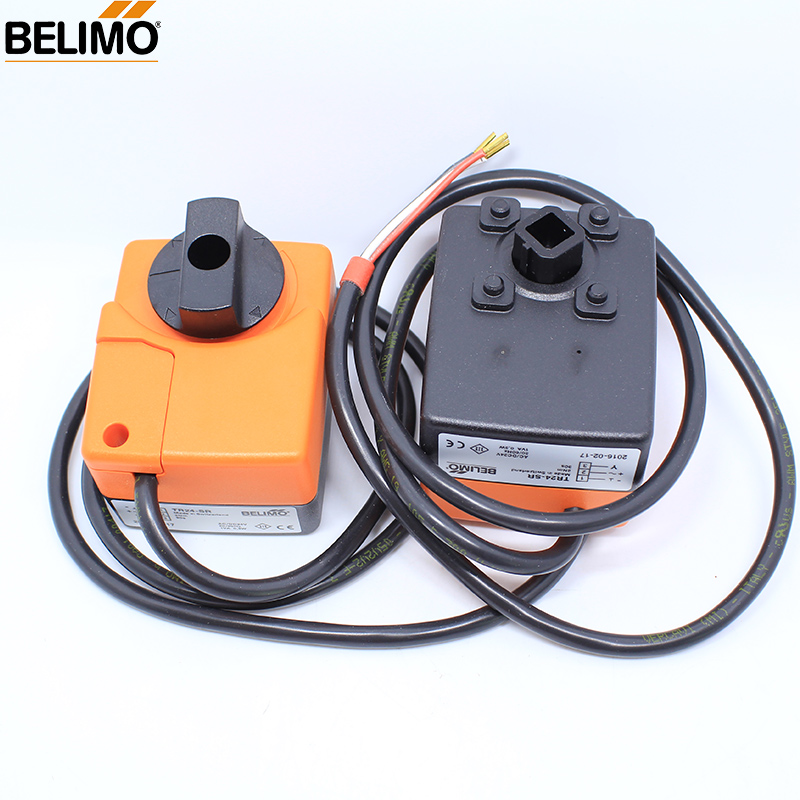

- Belimo TR24-SR 2NM Rotary actuator for ball valves
- Belimo-method to innovate building technology
with sensors, valves, and actuators. As a member of the UN
Global Compact, Belimo is an active stakeholder contributing
to the Sustainable Development Goals (SDG) directly.
LF230
Rotary actuator fail-safe, 4 Nm, AC 230 V, Open/close, 75 s, IP54
LF230-S
Rotary actuator fail-safe, 4 Nm, AC 230 V, Open/close, 75 s, 1 x SPDT, IP54
LF24
Rotary actuator fail-safe, 4 Nm, AC/DC 24 V, Open/close, 75 s, IP54
LF24-3
Rotary actuator fail-safe, 4 Nm, AC/DC 24 V, 3-point, 150 s, IP54
LF24-S
Rotary actuator fail-safe, 4 Nm, AC/DC 24 V, Open/close, 75 s, 1 x SPDT, IP54

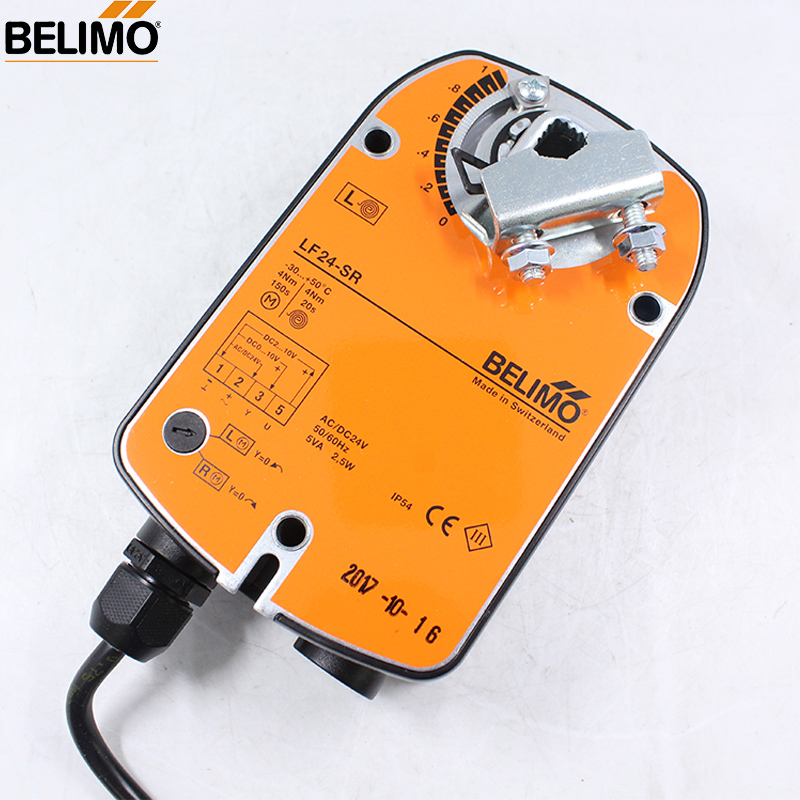

LF24-SR
Rotary actuator fail-safe, 4 Nm, AC/DC 24 V, 2...10 V, 150 s, IP54

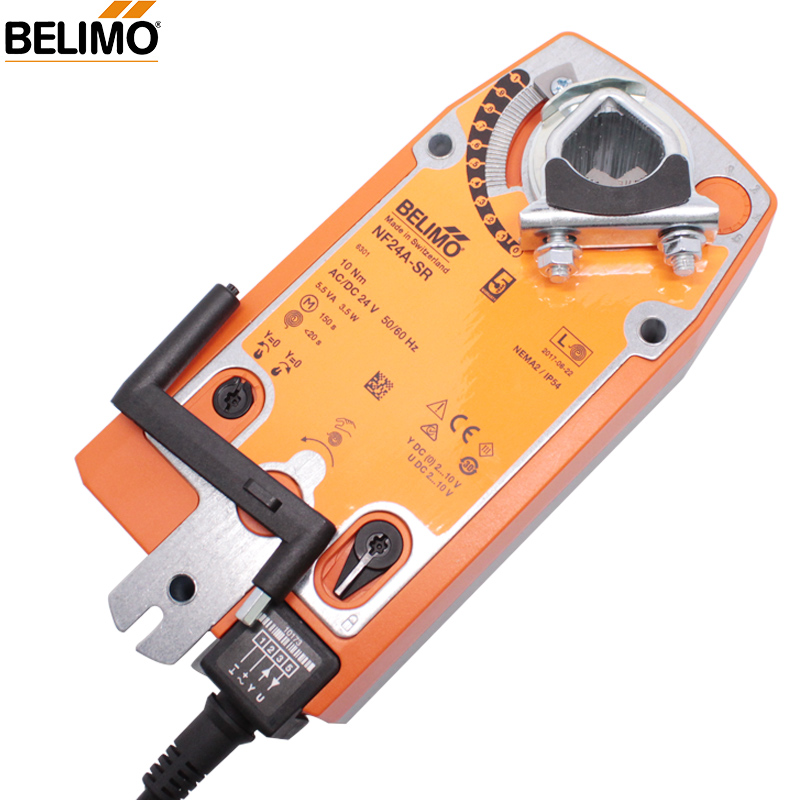

NF24A-SR
Rotary actuator fail-safe, 10 Nm, AC/DC 24 V, 2...10 V, 150 s, IP54
Heating and cooling components in the central plant, air handling
units, and secondary air treatment for the room are fitted
with sensors, damper actuators, and control valves which are
networked with each other for the best sense of well-being in
rooms. Our intelligent HVAC components deliver excellent air
quality for the highest level of room comfort.
NFA
Rotary actuator fail-safe, 10 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, IP54
NFA-S2
Rotary actuator fail-safe, 10 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, 2 x SPDT, IP54
Comfort – Innovations Redefining Comfort
Belimo‘s devices provide a precision controlled, comfortable
room environment that is essential for the wellbeing and
productivity of people.
SF24A-SR
Rotary actuator fail-safe, 20 Nm, AC/DC 24 V, 2...10 V, 150 s, IP54
SFA
Rotary actuator fail-safe, 20 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, IP54
SFA-S2
Rotary actuator fail-safe, 20 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, 2 x SPDT, IP54
EF230A-S2
Rotary actuator fail-safe, 30 Nm, AC 100...240 V, Open/close, 75 s, 2 x SPDT, IP54
EF24A-S2
Rotary actuator fail-safe, 30 Nm, AC/DC 24 V, Open/close, 75 s, 2 x SPDT, IP54
EF24A-SR
Rotary actuator fail-safe, 30 Nm, AC/DC 24 V, 2...10 V, 150 s, IP54
By
incorporating the UN Global Compact principles into strategies,
policies, and procedures, Belimo is not only upholding their basic
responsibilities to people and the planet, but also setting the
GK24A-1
Rotary actuator fail-safe, 40 Nm, AC/DC 24 V, Open/close, 150 s, IP54
GK24A-MP
Rotary actuator fail-safe, 40 Nm, AC/DC 24 V, MP-Bus, 150 s (90...150 s), IP54
GK24A-SR
Rotary actuator fail-safe, 40 Nm, AC/DC 24 V, 2...10 V, 150 s, IP54
With optimised and intelligent building control, we can protect
the environment and our resources in a sustainable manner.
Reducing energy consumption in buildings through increased
energy efficiency will provide a significant contribution to stop
the rise in global temperatures.
TF230
Rotary actuator fail-safe, 2.5 Nm, AC 100...240 V, Open/close, 75 s, IP42
TF230-S
Rotary actuator fail-safe, 2.5 Nm, AC 100...240 V, Open/close, 75 s, 1 x SPDT, IP42
TF24
Rotary actuator fail-safe, 2.5 Nm, AC/DC 24 V, Open/close, 75 s, IP42
TF24-S
Rotary actuator fail-safe, 2.5 Nm, AC/DC 24 V, Open/close, 75 s, 1 x SPDT, IP42
TF24-SR
Rotary actuator fail-safe, 2.5 Nm, AC/DC 24 V, 2...10 V, 150 s, IP42
Low maintenance and good customer service have a big impact
on building operations. Belimo‘s devices are famous for their
long lifetime and unique 5-year warranty. To achieve optimal
building performance, Belimo‘s innovative solutions can provide
real-time monitoring and transparency.
NKQ24A-1
Very fast running rotary actuator, 6 Nm, AC/DC 24 V, Open/close, 4 s, IP54
NKQ24A-SR
Very fast running rotary actuator, 6 Nm, AC/DC 24 V, 2...10 V, 4 s, IP54
– Experience installation Ease
Ease of installation and fast commissioning save time. The
unique tool-free enclosures of sensors or devices that allow
paperless smartphone commissioning are two examples that
have a big impact on reducing installation time. Belimo offers
the most comprehensive product ranges, including retrofit
applications, with fast delivery to the desired location.
Maintenance
LM230A
Rotary actuator, 5 Nm, AC 100...240 V, Open/close, 3-point, 150 s, IP54
LM230A-F
Rotary actuator, 5 Nm, AC 100...240 V, Open/close, 3-point, 150 s, Form fit 8x8 mm, IP54
LM230A-S
Rotary actuator, 5 Nm, AC 100...240 V, Open/close, 3-point, 150 s, 1 x SPDT, IP54
LM230A-TP
Rotary actuator, 5 Nm, AC 100...240 V, Open/close, 3-point, 150 s, IP54, Terminals
LM230ASR
Rotary actuator, 5 Nm, AC 100...240 V, 2...10 V, 150 s, IP54
LM24A
Rotary actuator, 5 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, IP54
LM24A-F
Rotary actuator, 5 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, Form fit 8x8 mm, IP54
LM24A-S
Rotary actuator, 5 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, 1 x SPDT, IP54
LM24A-SR
Rotary actuator, 5 Nm, AC/DC 24 V, 2...10 V, 150 s, IP54
LM24A-TP
Rotary actuator, 5 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, IP54, Terminals
NM230A
Rotary actuator, 10 Nm, AC 100...240 V, Open/close, 3-point, 150 s, IP54
NM230A-S
Rotary actuator, 10 Nm, AC 100...240 V, Open/close, 3-point, 150 s, 1 x SPDT, IP54
NM230A-TP
Rotary actuator, 10 Nm, AC 100...240 V, Open/close, 3-point, 150 s, IP54, Terminals

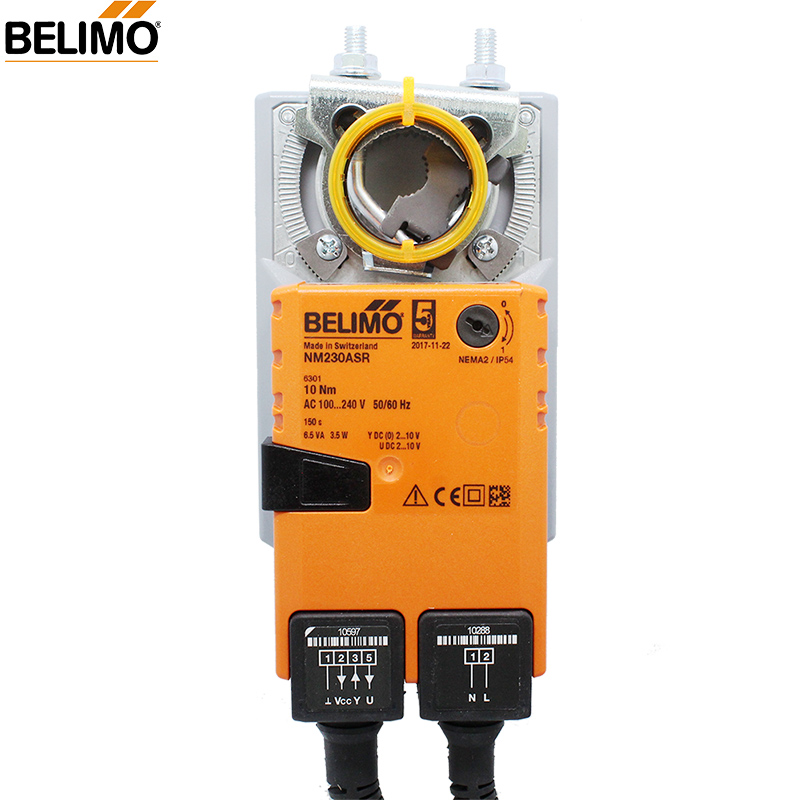

NM230ASR
Rotary actuator, 10 Nm, AC 100...240 V, 2...10 V, 150 s, IP54
NM24A
Rotary actuator, 10 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, IP54
NM24A-S
Rotary actuator, 10 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, 1 x SPDT, IP54
NM24A-S-TP
Rotary actuator, 10 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, 1 x SPDT, IP54, Terminals
NM24A-SR
Rotary actuator, 10 Nm, AC/DC 24 V, 2...10 V, 150 s, IP54
NM24A-TP
Rotary actuator, 10 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, IP54, Terminals
SM230A
Rotary actuator, 20 Nm, AC 100...240 V, Open/close, 3-point, 150 s, IP54
SM230A-S
Rotary actuator, 20 Nm, AC 100...240 V, Open/close, 3-point, 150 s, 1 x SPDT, IP54

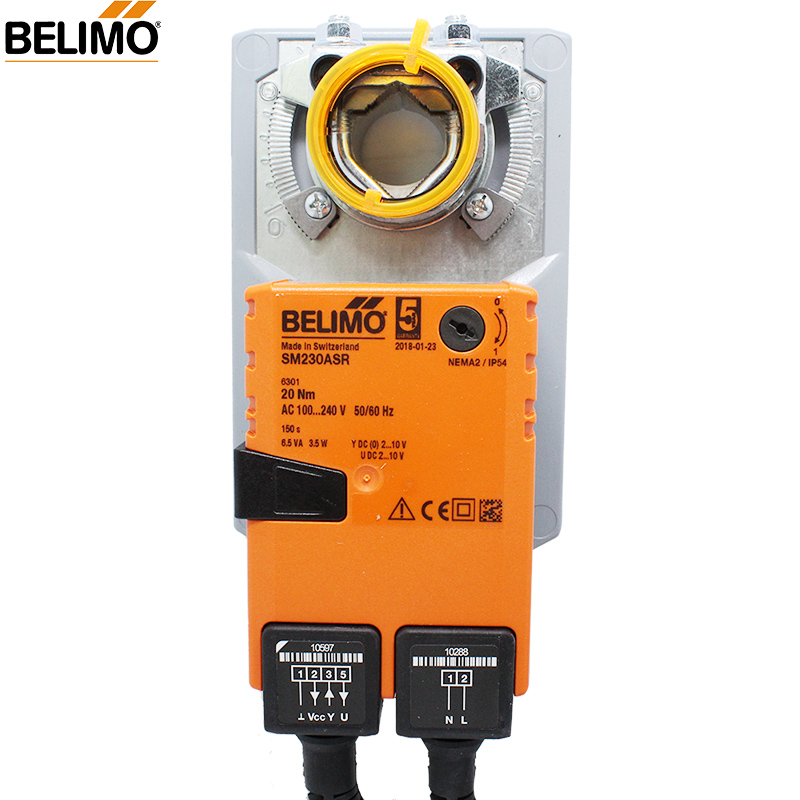

SM230ASR
Rotary actuator, 20 Nm, AC 100...240 V, 2...10 V, 150 s, IP54
SM24A
Rotary actuator, 20 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, IP54
SM24A-S
Rotary actuator, 20 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, 1 x SPDT, IP54
SM24A-SR
Rotary actuator, 20 Nm, AC/DC 24 V, 2...10 V, 150 s, IP54
CM230-L
Rotary actuator, 2 Nm, AC 100...240 V, Open/close, 3-point, 75 s, IP54
CM230-R
Rotary actuator, 2 Nm, AC 100...240 V, Open/close, 3-point, 75 s, IP54
CM24-L
Rotary actuator, 2 Nm, AC/DC 24 V, Open/close, 3-point, 75 s, IP54
CM24-R
Rotary actuator, 2 Nm, AC/DC 24 V, Open/close, 3-point, 75 s, IP54
CM24-SR-R
Rotary actuator, 2 Nm, AC/DC 24 V, 2...10 V, 75 s, IP54
CM24-T-L
Rotary actuator, 2 Nm, AC/DC 24 V, Open/close, 3-point, 75 s, IP20, Terminals
CM24-T-R
Rotary actuator, 2 Nm, AC/DC 24 V, Open/close, 3-point, 75 s, IP20, Terminals

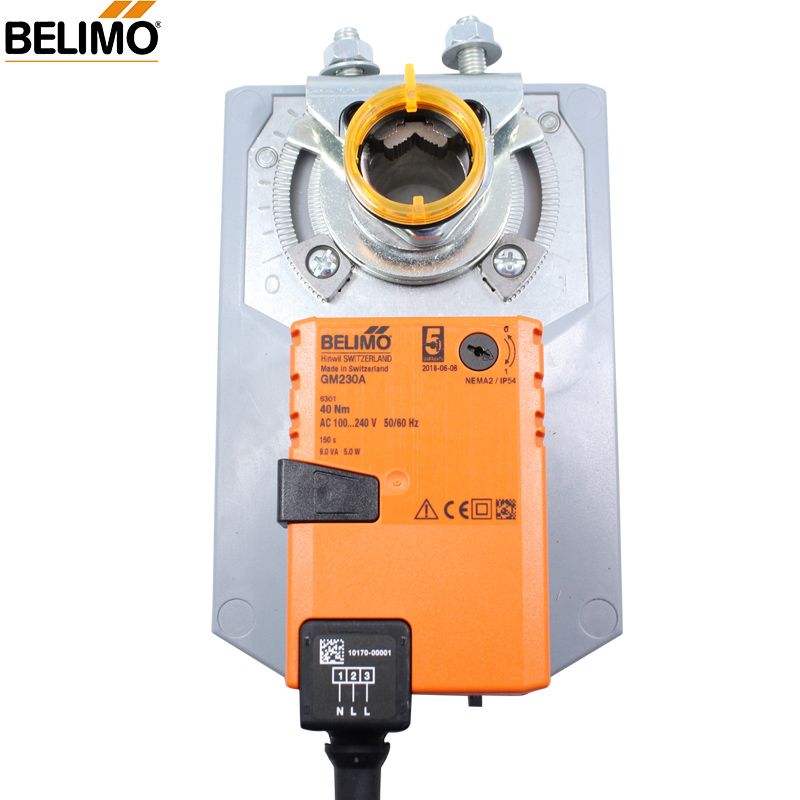

GM230A
Rotary actuator, 40 Nm, AC 100...240 V, Open/close, 150 s, IP54
GM24A
Rotary actuator, 40 Nm, AC/DC 24 V, Open/close, 150 s, IP54

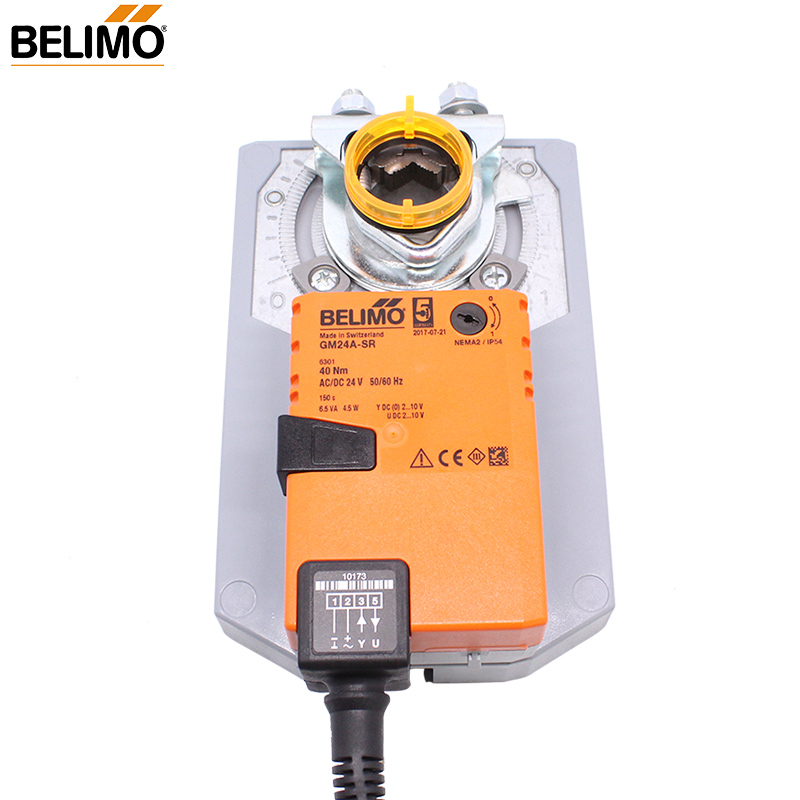

GM24A-SR
Rotary actuator, 40 Nm, AC/DC 24 V, 2...10 V, 150 s, IP54
UM230Y-F-L.1
Rotary actuator, 1 Nm, AC 100...240 V, Open/close, 3-point, 22 s, Form fit 8x8 mm, IP20, Connector plug
Multipack 100 pcs.
UM230Y-F-R.1
Rotary actuator, 1 Nm, AC 100...240 V, Open/close, 3-point, 22 s, Form fit 8x8 mm, IP20, Connector plug
Multipack 100 pcs.
UM230Y-L.1
Rotary actuator, 1 Nm, AC 100...240 V, Open/close, 3-point, 22 s, IP20, Connector plug
Multipack 100 pcs.
UM230Y-R.1
Rotary actuator, 1 Nm, AC 100...240 V, Open/close, 3-point, 22 s, IP20, Connector plug
Multipack 100 pcs.
UM24Y-F-L.1
Rotary actuator, 1 Nm, AC/DC 24 V, Open/close, 3-point, 22 s, Form fit 8x8 mm, IP20, Connector plug
Multipack 100 pcs.
UM24Y-F-R.1
Rotary actuator, 1 Nm, AC/DC 24 V, Open/close, 3-point, 22 s, Form fit 8x8 mm, IP20, Connector plug
Multipack 100 pcs.
UM24Y-L.1
Rotary actuator, 1 Nm, AC/DC 24 V, Open/close, 3-point, 22 s, IP20, Connector plug
Multipack 100 pcs.
UM24Y-R.1
Rotary actuator, 1 Nm, AC/DC 24 V, Open/close, 3-point, 22 s, IP20, Connector plug
Multipack 100 pcs.
UM24Y-SR-F-L.1
Rotary actuator, 1 Nm, AC/DC 24 V, 2...10 V, 22 s, Form fit 8x8 mm, IP20, Connector plug
Multipack 100 pcs.
UM24Y-SR-F-R.1
Rotary actuator, 1 Nm, AC/DC 24 V, 2...10 V, 22 s, Form fit 8x8 mm, IP20, Connector plug
Multipack 100 pcs.
UM24Y-SR-L.1
Rotary actuator, 1 Nm, AC/DC 24 V, 2...10 V, 22 s, IP20, Connector plug
Multipack 100 pcs.
UM24Y-SR-R.1
Rotary actuator, 1 Nm, AC/DC 24 V, 2...10 V, 22 s, IP20, Connector plug
Multipack 100 pcs.
LH230A200
Linear actuator, 150 N, AC 100...240 V, Open/close, 3-point, 150 s, Stroke 200 mm, IP54
LH230ASR100
Linear actuator, 150 N, AC 100...240 V, 2...10 V, 150 s, Stroke 100 mm, IP54
LH24A-SR100
Linear actuator, 150 N, AC/DC 24 V, 2...10 V, 150 s, Stroke 100 mm, IP54
LH24A300
Linear actuator, 150 N, AC/DC 24 V, Open/close, 3-point, 150 s, Stroke 300 mm, IP54
LH24A60
Linear actuator, 150 N, AC/DC 24 V, Open/close, 3-point, 150 s, Stroke 60 mm, IP54
LMQ24A
Very fast running rotary actuator, 4 Nm, AC/DC 24 V, Open/close, 2.5 s, IP54
LMQ24A-SR
Very fast running rotary actuator, 4 Nm, AC/DC 24 V, 2...10 V, 2.5 s, IP54
NMQ24A
Very fast running rotary actuator, 8 Nm, AC/DC 24 V, Open/close, 4 s, IP54
NMQ24A-SR
Very fast running rotary actuator, 8 Nm, AC/DC 24 V, 2...10 V, 4 s, IP54
SMQ24A
SMQ24A
Very fast running rotary actuator, 16 Nm, AC/DC 24 V, Open/close, 7 s, IP54
SMQ24A-SR
Very fast running rotary actuator, 16 Nm, AC/DC 24 V, 2...10 V, 7 s, IP54
NM230P
Rotary actuator (RobustLine), 10 Nm, AC 100...240 V, Open/close, 3-point, 150 s, IP66/67
NM230P-S
Rotary actuator (RobustLine), 10 Nm, AC 100...240 V, Open/close, 3-point, 150 s, 1 x SPDT, IP66/67
NM230PSR
Rotary actuator (RobustLine), 10 Nm, AC 100...240 V, 2...10 V, 150 s, IP66/67
NM24P
Rotary actuator (RobustLine), 10 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, IP66/67
NM24P-MF
Rotary actuator (RobustLine), 10 Nm, AC/DC 24 V, MFT, 2...10 V, 150 s, IP66/67
NM24P-S
Rotary actuator (RobustLine), 10 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, 1 x SPDT, IP66/67
NM24P-SR
Rotary actuator (RobustLine), 10 Nm, AC/DC 24 V, 2...10 V, 150 s, IP66/67

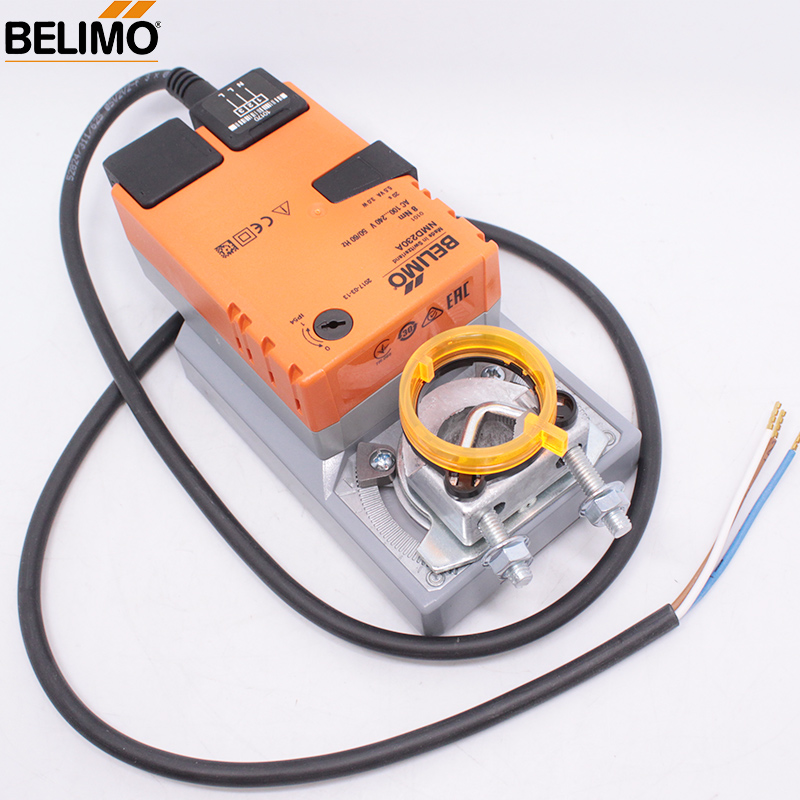

NMD230A
Very fast running rotary actuator, 8 Nm, AC 100...240 V, Open/close, 3-point, 20 s, IP54
SM230P
Rotary actuator (RobustLine), 20 Nm, AC 100...240 V, Open/close, 3-point, 150 s, IP66/67
SM230P-S
Rotary actuator (RobustLine), 20 Nm, AC 100...240 V, Open/close, 3-point, 150 s, 1 x SPDT, IP66/67
SM230PSR
Rotary actuator (RobustLine), 20 Nm, AC 100...240 V, 2...10 V, 150 s, IP66/67
SM24P
Rotary actuator (RobustLine), 20 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, IP66/67
SM24P-MF
Rotary actuator (RobustLine), 20 Nm, AC/DC 24 V, MFT, 2...10 V, 150 s, IP66/67
SM24P-S
Rotary actuator (RobustLine), 20 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, 1 x SPDT, IP66/67
SM24P-SR
Rotary actuator (RobustLine), 20 Nm, AC/DC 24 V, 2...10 V, 150 s, IP66/67
SMD230A
Very fast running rotary actuator, 16 Nm, AC 100...240 V, Open/close, 3-point, 20 s, IP54
GM230G-T
Rotary actuator, 40 Nm, AC 100...240 V, Open/close, 150 s, IP66/67, Terminals
GM24G-SR-T
Rotary actuator, 40 Nm, AC/DC 24 V, 2...10 V, 150 s, IP66/67, Terminals
GM24G-T
Rotary actuator, 40 Nm, AC/DC 24 V, Open/close, 150 s, IP66/67, Terminals
LHQ24A-SR100
Linear actuator, 100 N, AC/DC 24 V, 2...10 V, 3.5 s, Stroke 100 mm, IP54
LHQ24A100
Linear actuator, 100 N, AC/DC 24 V, Open/close, 3.5 s, Stroke 100 mm, IP54
SHQ24A-SR100
Linear actuator, 200 N, AC/DC 24 V, 2...10 V, 7 s, Stroke 100 mm, IP54
SHQ24A100
Linear actuator, 200 N, AC/DC 24 V, Open/close, 7 s, Stroke 100 mm, IP54
SMQ24G
Rotary actuator, 16 Nm, AC/DC 24 V, Open/close, 7 s, IP66/67
SMQ24G-SR
Rotary actuator, 16 Nm, AC/DC 24 V, 2...10 V, 7 s, IP66/67
PMCA-BAC-S2-T
Rotary actuator, 160 Nm, AC 24...240 V / DC 24...125 V, BACnet MS/TP, Modbus RTU, MP-Bus, 35 s (30...120 s), 2 x SPDT, IP66/67, Terminals
PMCA-S2-T
Rotary actuator, 160 Nm, AC 24...240 V / DC 24...125 V, Open/close, 3-point, 35 s, 2 x SPDT, IP66/67, Terminals
------------------------------------
BFL230-T-ST
Fire damper actuator, 4 Nm, AC 230 V, Open/close, 60 s, 2 x SPDT, IP54, Cable with connector plug, Thermoelectric tripping device BAT (72?C)
BFL230
Fire damper actuator, 4 Nm, AC 230 V, Open/close, 60 s, 2 x SPDT, IP54, Cable
BFL230-T
Fire damper actuator, 4 Nm, AC 230 V, Open/close, 60 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BFL230-T/300
Fire damper actuator, 4 Nm, AC 230 V, Open/close, 60 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BFL230-T/500
Fire damper actuator, 4 Nm, AC 230 V, Open/close, 60 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BFL230/300
Fire damper actuator, 4 Nm, AC 230 V, Open/close, 60 s, 2 x SPDT, IP54, Cable
BFL230/500
Fire damper actuator, 4 Nm, AC 230 V, Open/close, 60 s, 2 x SPDT, IP54, Cable
BFL24
Fire damper actuator, 4 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable
BFL24-SR
Fire damper actuator, 4 Nm, AC/DC 24 V, 2...10 V, 60 s, 2 x SPDT, IP54, Cable
BFL24-SR-T
Fire damper actuator, 4 Nm, AC/DC 24 V, 2...10 V, 60 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BFL24-ST
Fire damper actuator, 4 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable with connector plug
BFL24-ST/025
Fire damper actuator, 4 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable with connector plug
BFL24-T
Fire damper actuator, 4 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BFL24-T-ST
Fire damper actuator, 4 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable with connector plug, Thermoelectric tripping device BAT (72?C)
BFL24-T-ST/300
Fire damper actuator, 4 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable with connector plug, Thermoelectric tripping device BAT (72?C)
BFL24-T-ST/500
Fire damper actuator, 4 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable with connector plug, Thermoelectric tripping device BAT (72?C)
BFL24-T/500
Fire damper actuator, 4 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BFL24/500
Fire damper actuator, 4 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable
BFN230
Fire damper actuator, 9 Nm, AC 230 V, Open/close, 60 s, 2 x SPDT, IP54, Cable
BFN230-T
Fire damper actuator, 9 Nm, AC 230 V, Open/close, 60 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BFN230-T-ST
Fire damper actuator, 9 Nm, AC 230 V, Open/close, 60 s, 2 x SPDT, IP54, Cable with connector plug, Thermoelectric tripping device BAT (72?C)
BFN230-T/300
Fire damper actuator, 9 Nm, AC 230 V, Open/close, 60 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BFN230-T/500
Fire damper actuator, 9 Nm, AC 230 V, Open/close, 60 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BFN230/300
Fire damper actuator, 9 Nm, AC 230 V, Open/close, 60 s, 2 x SPDT, IP54, Cable
BFN230/500
Fire damper actuator, 9 Nm, AC 230 V, Open/close, 60 s, 2 x SPDT, IP54, Cable
BFN24
Fire damper actuator, 9 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable
BFN24-SR
Fire damper actuator, 9 Nm, AC/DC 24 V, 2...10 V, 60 s, 2 x SPDT, IP54, Cable
BFN24-SR-T
Fire damper actuator, 9 Nm, AC/DC 24 V, 2...10 V, 60 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BFN24-SR/050
Fire damper actuator, 9 Nm, AC/DC 24 V, 2...10 V, 60 s, 2 x SPDT, IP54, Cable
BFN24-ST
Fire damper actuator, 9 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable with connector plug
BFN24-ST/025
Fire damper actuator, 9 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable with connector plug
BFN24-T
Fire damper actuator, 9 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BFN24-T-ST
Fire damper actuator, 9 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable with connector plug, Thermoelectric tripping device BAT (72?C)
BFN24-T-ST/300
Fire damper actuator, 9 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable with connector plug, Thermoelectric tripping device BAT (72?C)
BFN24-T-ST/500
Fire damper actuator, 9 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable with connector plug, Thermoelectric tripping device BAT (72?C)
BFN24-T/050
Fire damper actuator, 9 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BFN24-T/500
Fire damper actuator, 9 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BFN24/500
Fire damper actuator, 9 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable
BF230
Fire damper actuator, 18 Nm, AC 230 V, Open/close, 120 s, 2 x SPDT, IP54, Cable
BF230-2/500
Fire damper actuator, 18 Nm, AC 230 V, Open/close, 120 s, 2 x SPDT, IP54, Cable
BF230-TN
Fire damper actuator, 18 Nm, AC 230 V, Open/close, 120 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BF230-TN-2
Fire damper actuator, 18 Nm, AC 230 V, Open/close, 120 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BF230-TN-ST
Fire damper actuator, 18 Nm, AC 230 V, Open/close, 120 s, 2 x SPDT, IP54, Cable with connector plug, Thermoelectric tripping device BAT (72?C)
BF230-TN/500
Fire damper actuator, 18 Nm, AC 230 V, Open/close, 120 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BF230/300
Fire damper actuator, 18 Nm, AC 230 V, Open/close, 120 s, 2 x SPDT, IP54, Cable
BF230/500
Fire damper actuator, 18 Nm, AC 230 V, Open/close, 120 s, 2 x SPDT, IP54, Cable
BF24
Fire damper actuator, 18 Nm, AC/DC 24 V, Open/close, 120 s, 2 x SPDT, IP54, Cable
BF24-C232
Fire damper actuator, 20 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BF24-SR
Fire damper actuator, 18 Nm, AC/DC 24 V, 2...10 V, 120 s, 2 x SPDT, IP54, Cable
BF24-SR-TN
Fire damper actuator, 18 Nm, AC/DC 24 V, 2...10 V, 120 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BF24-ST
Fire damper actuator, 18 Nm, AC/DC 24 V, Open/close, 120 s, 2 x SPDT, IP54, Cable with connector plug
BF24-TN
Fire damper actuator, 18 Nm, AC/DC 24 V, Open/close, 120 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BF24-TN-2
Fire damper actuator, 18 Nm, AC/DC 24 V, Open/close, 120 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BF24-TN-2-ST
Fire damper actuator, 18 Nm, AC/DC 24 V, Open/close, 120 s, 2 x SPDT, IP54, Cable with connector plug, Thermoelectric tripping device BAT (72?C)
BF24-TN-ST
Fire damper actuator, 18 Nm, AC/DC 24 V, Open/close, 120 s, 2 x SPDT, IP54, Cable with connector plug, Thermoelectric tripping device BAT (72?C)
BF24/500
Fire damper actuator, 18 Nm, AC/DC 24 V, Open/close, 120 s, 2 x SPDT, IP54, Cable
BF48-5
Fire damper actuator, 18 Nm, AC/DC 48 V, Open/close, 120 s, 2 x SPDT, IP54, Cable
BF48-5-ST
Fire damper actuator, 18 Nm, AC/DC 48 V, Open/close, 120 s, 2 x SPDT, IP54, Cable with connector plug
BF230-C232
Fire damper actuator, 20 Nm, AC 230 V, Open/close, 60 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BF230-TN/300
Fire damper actuator, 18 Nm, AC 230 V, Open/close, 120 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BF24-2-ST
Fire damper actuator, 18 Nm, AC/DC 24 V, Open/close, 120 s, 2 x SPDT, IP54, Cable with connector plug
BF24-TN-ST/300
Fire damper actuator, 18 Nm, AC/DC 24 V, Open/close, 120 s, 2 x SPDT, IP54, Cable with connector plug, Thermoelectric tripping device BAT (72?C)
BF24-TN/500
Fire damper actuator, 18 Nm, AC/DC 24 V, Open/close, 120 s, 2 x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72?C)
BF24TL-TN-ST
Fire damper actuator, 18 Nm, AC/DC 24 V, Open/close, communicative, 120 s, 2 x SPDT, IP54, Cable with connector plug, Thermoelectric tripping device BAT (72?C)
BF24TL-TN-ST-2
Fire damper actuator, 18 Nm, AC/DC 24 V, Open/close, communicative, 120 s, 2 x SPDT, IP54, Cable with connector plug, Thermoelectric tripping device BAT (72?C)
FSAF120A
Fire damper actuator, 20 Nm, Spring return, AC 120 V, Open/close
FSAF120A-S
Fire damper actuator, 20 Nm, Spring return, AC 120 V, Open/close, 2 x SPST
FSAF230A
Fire damper actuator, 20 Nm, Spring return, AC 230 V, Open/close
FSAF230A-S
Fire damper actuator, 20 Nm, Spring return, AC 230 V, Open/close, 2 x SPST
FSAF24A
Fire damper actuator, 20 Nm, Spring return, AC/DC 24 V, Open/close
FSAF24A-S
Fire damper actuator, 20 Nm, Spring return, AC/DC 24 V, Open/close, 2 x SPST
FSAFB24-SR
Fire damper actuator, 20 Nm, Spring return, AC/DC 24 V, 2...10 V, modulating
FSAFB24-SR-S
Fire damper actuator, 20 Nm, Spring return, AC/DC 24 V, 2...10 V, 2 x SPDT, modulating
FSLF120 US
Fire damper actuator, 3.5 Nm from 0...177?C, Spring return, AC 120 V, Open/close
FSLF120-S US
Fire damper actuator, 3.5 Nm from 0...177?C, Spring return, AC 120 V, Open/close, 2 x SPST
FSLF230 US
Fire damper actuator, 3.5 Nm from 0...177?C, Spring return, AC 230 V, Open/close
FSLF230-S US
Fire damper actuator, 3.5 Nm from 0...177?C, Spring return, AC 230 V, Open/close, 2 x SPST
FSLF24 US
Fire damper actuator, 3.5 Nm from 0...177?C, Spring return, AC/DC 24 V, Open/close
FSLF24-S US
Fire damper actuator, 3.5 Nm from 0...177?C, Spring return, AC/DC 24 V, Open/close, 2 x SPST
FSNF120 US
Fire damper actuator, 8 Nm from 0...177?C, Spring return, AC 120 V, Open/close
FSNF120-S US
Fire damper actuator, 8 Nm from 0...177?C, Spring return, AC 120 V, Open/close, 2 x SPDT
FSNF230 US
Fire damper actuator, 8 Nm from 0...177?C, Spring return, AC 230 V, Open/close
FSNF230-S US
Fire damper actuator, 8 Nm from 0...177?C, Spring return, AC 230 V, Open/close, 2 x SPDT
FSNF24 US
Fire damper actuator, 8 Nm from 0...177?C, Spring return, AC/DC 24 V, Open/close
AV6-20
Shaft extension 170 mm ?10 mm for damper shaft ? 6...16 mm
AV8-25
Shaft extension 240 mm ?20 mm for damper shaft ? 8...22.7 mm
IND-AFB
End stop indicator, for NF..A / SF..A
K-ENSA
Shaft clamp one-sided for NM..A, SM..A, clamping range ?8...26 mm
Multipack 20 pcs.
K-NA
Shaft clamp reversible for NM..A, LMQ.., clamping range ?8...20 mm
K-SA
Shaft clamp reversible for SM..A, NKQ.., NMQ.., clamping range ?10...20 mm
K6-1
Shaft clamp reversible, clamping range ?16...20 mm
K7-2
Shaft clamp reversible, for central mounting, for damper shafts ?12.7 / 19.0 / 25.4 mm
KG10A
Ball joint suitable for damper crank arm KH8 / KH10, Multipack 10 pcs.
KG6
Ball joint suitable for damper crank arm KH8, Multipack 10 pcs.
KG8
Ball joint suitable for damper crank arm KH8, Multipack 10 pcs.
KH-AFB
Actuator arm, for 3/4" shafts, clamping range ?10...22 mm, Slot width 8.2 mm
KH10
Damper crank arm Slot width 8.2 mm, clamping range ?14...25 mm
KH12
Damper crank arm Slot width 8.2 mm, for ?1.05"
KH8
Damper crank arm Slot width 8.2 mm, clamping range ?10...18 mm
P10000A
Feedback potentiometer 10 k? add-on
P1000A
Feedback potentiometer 1 k? add-on
P140A
Feedback potentiometer 140 ? add-on
P200A
Feedback potentiometer 200 ? add-on
P2800A
Feedback potentiometer 2.8 k? add-on
P5000A
Feedback potentiometer 5 k? add-on
P500A
Feedback potentiometer 500 ? add-on
S1A
Auxiliary switch 1 x SPDT add-on
S2A
Auxiliary switch 2 x SPDT add-on
S2A-F
Auxiliary switch 2 x SPDT
S2A-H
Auxiliary switch 2 x SPDT add-on
S2A/300 GR
Auxiliary switch 2 x SPDT add-on, grey
S2A/500 GR
Auxiliary switch 2 x SPDT add-on, grey
SGA24
Positioner for wall mounting
SGE24
Positioner for built-in mounting
SH10
Push rod for KG10A ball joint (36” L, 3/8” diameter).
SH8
Push rod for KG6 & KG8 ball joints (36” L, 5/16” diameter).
Z-AF
Retrofit clip, for NF..A / SF..A
ZBAE72
Spare tripping element for BAE, Duct inside temperature 72?C (colour black), Probe length 65 mm
ZBAE72/9
Spare tripping element for BAE, Duct inside temperature 72?C (colour black), Probe length 90 mm
ZBAE95
Spare tripping element for BAE, Duct inside temperature 95?C (colour green), Probe length 65 mm
ZBAT72
Spare tripping element for BAT, Duct inside temperature 72?C (colour black), Probe length 65 mm
ZCQ-E
Spindle extension CQ
ZCQ-W
Housing cover CQ, Colour: white (RAL 9010)
ZG-110
Linkage kit
ZG-118
Mounting bracket
for AF / NF
ZG-AFB
Mounting kit for linkage operation for flat and side installation
ZG-AFB118
Mounting kit, for foot mount installation
ZG-DC2
Damper clip for damper blade, 6” width.
ZK-BF
Adapter for form fit with clamp for round shaft 10...20 mm / square 10...16 mm for BF, BLF
ZK1-GEN
Connection cable 5 m, A: RJ11 6/4 ZTH EU, B: 6-pin for connection to service socket
ZK2-GEN
Connection cable 5 m, A: RJ11 6/4 ZTH EU, B: free wire end for connection to MP/PP terminal
ZS-100
Weather shield, 330x203x152 mm [13x8x6"] (LxBxH)
ZS-150
Weather shield, 406x213x102 mm [16x8-3/8x4"] (LxWxH)
ZS-260
Explosion proof housing, 406x254x164 mm [16x10x6.435"] (LxBxH), for NK.. / GM.. / GK.. / AM.. / LF.. / AF.. / NF.. / FS..F.. Series Actuators
ZS-300
Weather shield, 438x222x140 mm [17-1/4x8-3/4x5-1/2"] (LxBxH)
ZTH AP
Service Tool, with ZIP-USB function, for parametrisable and communicative Belimo actuators, VAV controller and HVAC performance devices
SY12-230A-MF-T
Rotary actuator, 3500 Nm, AC 230 V, MFT, 2...10 V, 47 s, 2 x SPDT, IP67, F16, Terminals
SY4-230-3-T
Rotary actuator, 400 Nm, AC 230 V, Open/close, 3-point, 21 s, 2 x SPDT, IP67, F10/F12, Terminals
SY4-24-3-T
Rotary actuator, 400 Nm, AC/DC 24 V, Open/close, 3-point, 30 s, 2 x SPDT, IP67, F10/F12, Terminals
SY4U230-MF-T
Rotary actuator, 400 Nm, AC 230 V, 0...10 V, 18 s, 2 x SPDT, IP67, F10/F12, Terminals
SY4U24-MF-T
Rotary actuator, 400 Nm, AC/DC 24 V, 0...10 V, 16 s, 2 x SPDT, IP67, F10/F12, Terminals
SY6-230-3-T
Rotary actuator, 650 Nm, AC 230 V, Open/close, 3-point, 38 s, 2 x SPDT, IP67, F10/F12, Terminals
SY6U230-MF-T
Rotary actuator, 650 Nm, AC 230 V, 0...10 V, 31 s, 2 x SPDT, IP67, F10/F12, Terminals
SY7-230A-3-T
Rotary actuator, 1000 Nm, AC 230 V, Open/close, 3-point, 58 s, 2 x SPDT, IP67, F14, Terminals
SY7-230A-MF-T
Rotary actuator, 1000 Nm, AC 230 V, MFT, 2...10 V, 44 s, 2 x SPDT, IP67, F14, Terminals
SY8-230A-3-T
Rotary actuator, 1500 Nm, AC 230 V, Open/close, 3-point, 55 s, 2 x SPDT, IP67, F14, Terminals
SY8-230A-MF-T
Rotary actuator, 1500 Nm, AC 230 V, MFT, 2...10 V, 55 s, 2 x SPDT, IP67, F14, Terminals
SY9-230A-3-T
Rotary actuator, 2000 Nm, AC 230 V, Open/close, 3-point, 68 s, 2 x SPDT, IP67, F16, Terminals
SY9-230A-MF-T
Rotary actuator, 2000 Nm, AC 230 V, MFT, 2...10 V, 61 s, 2 x SPDT, IP67, F16, Terminals
TQF230
Rotary actuator fail-safe NC, 2.5 Nm, AC 100...240 V, Open/close, 75 s, IP42
TQF24
Rotary actuator fail-safe NC, 2.5 Nm, AC/DC 24 V, Open/close, 75 s, IP42
TR230-3
Rotary actuator, 2 Nm, AC 230 V, 3-point, 105 s, IP40
TR24
Rotary actuator, 2 Nm, AC/DC 24 V, Open/close, 3-point, 100 s, IP40
TR24-SR
Rotary actuator, 2 Nm, AC/DC 24 V, 2...10 V, 90 s, IP40
TRF230
Rotary actuator fail-safe NC, 2.5 Nm, AC 100...240 V, Open/close, 75 s, IP42
TRF230-S
Rotary actuator fail-safe NC, 2.5 Nm, AC 100...240 V, Open/close, 75 s, 1 x SPDT, IP42
– Lasting Performance, Backed by World Class
Support
GK24G-1
Rotary actuator fail-safe, 40 Nm, AC/DC 24 V, Open/close, 150 s, IP66/67
GK24G-MP
Rotary actuator fail-safe, 40 Nm, AC/DC 24 V, MP-Bus, 150 s (90...150 s), IP66/67
GK24G-SR
Rotary actuator fail-safe, 40 Nm, AC/DC 24 V, 2...10 V, 150 s, IP66/67
Safety – Uncompromised Safety
Belimo safety actuators save lives and help to minimise damage
to buildings and tangible assets. Reliability that has been
specially designed for fire and smoke dampers. Furthermore, a
complete range of actuators with a fail-safe function and fast
running actuators increases safety by preventing hazardous
situations.
Installation
NF24G-SR-L
Rotary actuator fail-safe, 10 Nm, AC/DC 24 V, 2...10 V, 150 s, IP66/67
NFG-L
Rotary actuator fail-safe, 10 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, IP66/67
NFG-S2-L
Rotary actuator fail-safe, 10 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, 2 x SPDT, IP66/67
NKQ24P-1
Rotary actuator (RobustLine) fail-safe, 6 Nm, AC/DC 24 V, Open/close, 4 s, IP66/67
NKQ24P-SR
Rotary actuator (RobustLine) fail-safe, 6 Nm, AC/DC 24 V, 2...10 V, 4 s, IP66/67
Ventilation Applications
Air treatment, distribution, control and feedback
The world's most comprehensive range of actuator solutions for air dampers
of up to 8 m2
includes rotary and linear actuators with a wide range of
motorisation levels and actuating times. The actuators cover almost all
motorisation requirements for the control of air flows in air-conditioning
plants, from treatment and distribution to feedback and retreatment. The
product range also includes special actuators for indoor and outdoor use
in extreme conditions. As a perfect complement to the actuators, Belimo
offers a comprehensive range of sensors for measuring air temperature and
humidity as well as air quality. Differential pressure sensors guarantee an
accurate filter monitoring to optimally plan the service calls in advance.
SF24G-SR-L
Rotary actuator fail-safe, 20 Nm, AC/DC 24 V, 2...10 V, 150 s, IP66/67
SFG-L
Rotary actuator fail-safe, 20 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, IP66/67
SFG-S2-L
Rotary actuator fail-safe, 20 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, 2 x SPDT, IP66/67
The
product range also includes special actuators for indoor and outdoor use
in extreme conditions. As a perfect complement to the actuators, Belimo
offers a comprehensive range of sensors for measuring air temperature and
humidity as well as air quality. Differential pressure sensors guarantee an
accurate filter monitoring to optimally plan the service calls in advance.
PKCA-BAC-S2-T
Rotary actuator fail-safe, 160 Nm, AC 24...240 V / DC 24...125 V, BACnet MS/TP, Modbus RTU, MP-Bus, 35 s (30...120 s), 2 x SPDT, IP66/67, Terminals
NM24P-S
Rotary actuator (RobustLine), 10 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, 1 x SPDT, IP66/67
NM24P-SR
Rotary actuator (RobustLine), 10 Nm, AC/DC 24 V, 2...10 V, 150 s, IP66/67
Water applications
Efficient operation of heating and cooling circuits
In addition to motorised butterfly valves and globe valves, Belimo supplies
unique, air-bubble tight characterised control valves for the precise control
of heating and cooling circuits without energy loss.
SM230P
Rotary actuator (RobustLine), 20 Nm, AC 100...240 V, Open/close, 3-point, 150 s, IP66/67
Tightsealing valves of the Belimo ZoneTight™ product range are the ideal solution for
energy-saving, unproblematic room and zone control in tight spaces
SM230P-S
Rotary actuator (RobustLine), 20 Nm, AC 100...240 V, Open/close, 3-point, 150 s, 1 x SPDT, IP66/67
The new range of Belimo Energy
Valve™ and Thermal Energy Meter certified EN 1434/MID integrates energy
metering, energy control are IoT-enabled billing in one device. It offers seamless
and direct integration to the BMS or IoT-based monitoring platform.
SM230PSR
Rotary actuator (RobustLine), 20 Nm, AC 100...240 V, 2...10 V, 150 s, IP66/67
SM24P
Rotary actuator (RobustLine), 20 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, IP66/67
SM24P-MF
Rotary actuator (RobustLine), 20 Nm, AC/DC 24 V, MFT, 2...10 V, 150 s, IP66/67
SM24P-S
Rotary actuator (RobustLine), 20 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, 1 x SPDT, IP66/67
SM24P-SR
Rotary actuator (RobustLine), 20 Nm, AC/DC 24 V, 2...10 V, 150 s, IP66/67
The forward-looking, multifunctional Belimo
Energy Valve™ with integrated logic allows energy flows to be monitored
and optimised. The integrated Delta-T Manager ensures that the differential
temperature does not fall below defined values and that the heat exchanger
is always run in the energy-efficient range.
GK24G-1
Rotary actuator fail-safe, 40 Nm, AC/DC 24 V, Open/close, 150 s, IP66/67
GK24G-MP
Rotary actuator fail-safe, 40 Nm, AC/DC 24 V, MP-Bus, 150 s (90...150 s), IP66/67
GK24G-SR
Rotary actuator fail-safe, 40 Nm, AC/DC 24 V, 2...10 V, 150 s, IP66/67
Pressure-independent
characterised control valves always ensure the correct amount of water thanks
to permanent dynamic balancing, even if there are differential pressure changes
and during partial load operation.
GM230G-T
Rotary actuator, 40 Nm, AC 100...240 V, Open/close, 150 s, IP66/67, Terminals
GM24G-SR-T
Rotary actuator, 40 Nm, AC/DC 24 V, 2...10 V, 150 s, IP66/67, Terminals
GM24G-T
Rotary actuator, 40 Nm, AC/DC 24 V, Open/close, 150 s, IP66/67, Terminals
Retrofit applications
Giving new verve to old systems
For renovations in existing constructions and replacements for older
actuators on air dampers, globe valves and rotary valves,
NF24G-SR-L
Rotary actuator fail-safe, 10 Nm, AC/DC 24 V, 2...10 V, 150 s, IP66/67
NFG-L
Rotary actuator fail-safe, 10 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, IP66/67
NFG-S2-L
Rotary actuator fail-safe, 10 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, 2 x SPDT, IP66/67
NKQ24P-1
Rotary actuator (RobustLine) fail-safe, 6 Nm, AC/DC 24 V, Open/close, 4 s, IP66/67
NKQ24P-SR
Rotary actuator (RobustLine) fail-safe, 6 Nm, AC/DC 24 V, 2...10 V, 4 s, IP66/67
Handy VAV-Retrofit kits with controllers, actuators
and pick-up devices are available for replacing defective or pneumatic VAV
devices. To easily determine the right replacement actuators,
SF24G-SR-L
Rotary actuator fail-safe, 20 Nm, AC/DC 24 V, 2...10 V, 150 s, IP66/67
SFG-L
Rotary actuator fail-safe, 20 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, IP66/67
Belimo has
developed a Retrofit tool which determines the suitable actuator using diffe
SFG-S2-L
Rotary actuator fail-safe, 20 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, 2 x SPDT, IP66/67
Their
parameters can be set precisely on site to the prevailing requirements.
Retrofit
globe and rotary actuators can be mounted practically on all common valve
makes with only a few steps.
SMQ24G
Rotary actuator, 16 Nm, AC/DC 24 V, Open/close, 7 s, IP66/67
SMQ24G-SR
Rotary actuator, 16 Nm, AC/DC 24 V, 2...10 V, 7 s, IP66/67
Belimo supplies a
comprehensive product range of special Retrofit motorisation solutions.
PKCA-BAC-S2-T
Rotary actuator fail-safe, 160 Nm, AC 24...240 V / DC 24...125 V, BACnet MS/TP, Modbus RTU, MP-Bus, 35 s (30...120 s), 2 x SPDT, IP66/67, Terminals
PMCA-BAC-S2-T
Rotary actuator, 160 Nm, AC 24...240 V / DC 24...125 V, BACnet MS/TP, Modbus RTU, MP-Bus, 35 s (30...120 s), 2 x SPDT, IP66/67, Terminals
PMCA-S2-T
Rotary actuator, 160 Nm, AC 24...240 V / DC 24...125 V, Open/close, 3-point, 35 s, 2 x SPDT, IP66/67, Terminals
LMQ24A
Very fast running rotary actuator, 4 Nm, AC/DC 24 V, Open/close, 2.5 s, IP54
LMQ24A-SR
Very fast running rotary actuator, 4 Nm, AC/DC 24 V, 2...10 V, 2.5 s, IP54
NKQ24A-1
Very fast running rotary actuator, 6 Nm, AC/DC 24 V, Open/close, 4 s, IP54
NKQ24A-SR
Very fast running rotary actuator, 6 Nm, AC/DC 24 V, 2...10 V, 4 s, IP54
NMQ24A
Very fast running rotary actuator, 8 Nm, AC/DC 24 V, Open/close, 4 s, IP54
NMQ24A-SR
Very fast running rotary actuator, 8 Nm, AC/DC 24 V, 2...10 V, 4 s, IP54
SMQ24A
Very fast running rotary actuator, 16 Nm, AC/DC 24 V, Open/close, 7 s, IP54
SMQ24A-SR
Very fast running rotary actuator, 16 Nm, AC/DC 24 V, 2...10 V, 7 s, IP54
Safety solutions
Protecting life and material assets from fire and smoke
Fires represent the greatest potential threat to people and tangible assets
in buildings. Efficient fire protection saves lives in case of emergency,
helps minimise property damage and secures the continued operation
of companies. The best protection against the spread of fire and smoke
through the ductwork is provided by motorised fire dampers to form fire
compartments. Smoke control systems with motorised smoke control
dampers ensure smoke-free escape and rescue routes.
NMD230A
Very fast running rotary actuator, 8 Nm, AC 100...240 V, Open/close, 3-point, 20 s, IP54
SMD230A
Very fast running rotary actuator, 16 Nm, AC 100...240 V, Open/close, 3-point, 20 s, IP54
LHQ24A-SR100
Linear actuator, 100 N, AC/DC 24 V, 2...10 V, 3.5 s, Stroke 100 mm, IP54
LHQ24A100
Linear actuator, 100 N, AC/DC 24 V, Open/close, 3.5 s, Stroke 100 mm, IP54
NKQ24P-1
Rotary actuator (RobustLine) fail-safe, 6 Nm, AC/DC 24 V, Open/close, 4 s, IP66/67
NKQ24P-SR
Rotary actuator (RobustLine) fail-safe, 6 Nm, AC/DC 24 V, 2...10 V, 4 s, IP66/67
SHQ24A-SR100
Linear actuator, 200 N, AC/DC 24 V, 2...10 V, 7 s, Stroke 100 mm, IP54
SHQ24A100
Linear actuator, 200 N, AC/DC 24 V, Open/close, 7 s, Stroke 100 mm, IP54
SMQ24G
Rotary actuator, 16 Nm, AC/DC 24 V, Open/close, 7 s, IP66/67
SMQ24G-SR
Rotary actuator, 16 Nm, AC/DC 24 V, 2...10 V, 7 s, IP66/67
System protection
Avoiding damage in the event of interruptions to operation
Fail-safe actuators protect valuable systems from damage caused by ice,
water and steam. Particularly in the event of a power supply voltage failure,
this actuator product range moves the dampers to the predefined fail-safe
position. Depending on the actuator, short power failures can be bridged for
up to 10 seconds and the fail-safe positions can be individually defined.
Unnecessary failures and convenience impairments are thereby avoided.
PKCA-BAC-S2-T
Rotary actuator fail-safe, 160 Nm, AC 24...240 V / DC 24...125 V, BACnet MS/TP, Modbus RTU, MP-Bus, 35 s (30...120 s), 2 x SPDT, IP66/67, Terminals
PMCA-BAC-S2-T
Rotary actuator, 160 Nm, AC 24...240 V / DC 24...125 V, BACnet MS/TP, Modbus RTU, MP-Bus, 35 s (30...120 s), 2 x SPDT, IP66/67, Terminals
PMCA-S2-T
Rotary actuator, 160 Nm, AC 24...240 V / DC 24...125 V, Open/close, 3-point, 35 s, 2 x SPDT, IP66/67, Terminals
LH230A200
Linear Actuators
Bus and system integration
Monitoring and controlling systems from a central location
Belimo actuators can be easily integrated into intelligent building
management systems. Actuators with an integrated BACnet, Modbus and
KNX interface are available for direct connections. MP actuators can be used
to combine up to eight different control elements into one MP-Bus section
and connect to virtually any supervisory system with greatly reduced wiring
costs. Different adjustment and service tools as well as the Belimo Cloud
make commissioning, monitoring and optimisation easier.
LH230ASR100
LH24A-SR100
LH24A300
Linear actuator, 150 N, AC/DC 24 V, Open/close, 3-point, 150 s, Stroke 300 mm, IP54
LH24A60
LHQ24A-SR100
Linear actuator, 100 N, AC/DC 24 V, 2...10 V, 3.5 s, Stroke 100 mm, IP54
LHQ24A100
Linear actuator, 100 N, AC/DC 24 V, Open/close, 3.5 s, Stroke 100 mm, IP54
Room and system solutions
Ensuring individual comfort and saving energy
Used in offices, public buildings, production halls, commercial premises
or sensitive operating areas, volumetric flow controllers, actuators and
sensors ensure an optimum room climate while consuming minimal levels
of energy. They can be used as ZoneEase™, VAV-Compact or VAVUniversal devices. Special, ZoneEase™ and compact VAV control units
are available for distribution boxes used in controlled residential ventilation.
SHQ24A-SR100
Linear actuator, 200 N, AC/DC 24 V, 2...10 V, 7 s, Stroke 100 mm, IP54
SHQ24A100
Linear actuator, 200 N, AC/DC 24 V, Open/close, 7 s, Stroke 100 mm, IP54
BEN230
BEN24
BEN24-SR
BEN24-ST
BEE230
Smoke control damper actuator, 25 Nm, AC 230 V, Open/close, 60 s, 2 x SPDT, Form fit 12x12 mm, IP54, Cable
BEE24
Smoke control damper actuator, 25 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, Form fit 12x12 mm, IP54, Cable
BEE24-SR
BEE24-ST
Smoke control damper actuator, 25 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, Form fit 12x12 mm, IP54, Cable with connector plug
BE230
BE230-12
Smoke control damper actuator, 40 Nm, AC 230 V, Open/close, 60 s, 2 x SPDT, Form fit 12x12 mm, IP54, Cable
BE24
BE24-12
BE24-12-ST
BE24-ST
Smoke control damper actuator, 40 Nm, AC/DC 24 V, Open/close, 60 s, 2 x SPDT, Form fit 14x14 mm, IP54, Cable with connector plug
Applications
• Master-slave system, specially developed by Belimo for HVAC
actuators and sensors
• Up to 8 different control elements can be combined and together
connected to a supervisory field bus system (BACnet, Modbus
etc.)
• One sensor can be connected per actuator
• Either the Belimo gateways (UK24BAC, UK24MOD) or gateways
and DDC controllers from other manufacturers can be used as
te MP master
LMV-D3-KNX
Volumetric flow controller VAV-Compact, 5 Nm, AC/DC 24 V, KNX (S-Mode), IP54
LMV-D3-MOD
Volumetric flow controller VAV-Compact, 5 Nm, AC/DC 24 V, BACnet MS/TP, Modbus RTU, MP-Bus, IP54
LMV-D3-MP
Volumetric flow controller VAV-Compact, 5 Nm, AC/DC 24 V, MP-Bus, IP54
NMV-D3-MP
Volumetric flow controller VAV-Compact, 10 Nm, AC/DC 24 V, MP-Bus, IP54
BACnet/Modbus actuators
• Actuators with an RS485 interface can be connected directly to
BACnet MS/TP or Modbus RTU
• Actuators with Ethernet interface can be connected directly to
BACnet IP or Modbus TCP. At the same time a connection with
the Belimo Cloud is possible
• The analogue control can be monitored and overridden via Bus
in hybrid operation
• Sensor can be connected to the actuator
• EV...R2+... support Power over Ethernet (PoE)
AVK230A-3
Globe valve actuator fail-safe NC / NO, 2000 N, AC 100...240 V, 3-point, 150 s, Stroke 32 mm, IP54
AVK24A-3-TPC
Globe valve actuator fail-safe NC / NO, 2000 N, AC 24 V, 3-point, 150 s, Stroke 32 mm, IP54, Terminals with cable
AVK24A-MP-TPC
Globe valve actuator fail-safe NC / NO, 2000 N, AC/DC 24 V, MP-Bus, 150 s (90...150 s), Stroke 32 mm, IP54, Terminals with cable
Actuators with Ethernet interface can optionally
exchange operating and setting data with Belimo Cloud
• The monitoring and optimisation of the devices is made
through a central access point
• Open Client-API for the connection to specific Cloud
solutions
CQ230A
CQ24A
Rotary actuator (ZoneTight), 1 Nm, AC/DC 24 V, Open/close, 3-point, 75 s, IP40
CQ24A-BAC
CQ24A-MPL
Rotary actuator (ZoneTight), 1 Nm, AC/DC 24 V, MP-Bus, 75 s, IP40
CQ24A-SR
CQC230A
Rotary actutor (ZoneTight), 1 Nm, AC 100...240 V, Open/close, 3-point, 35 s, IP40
CQK230A
CQK24A
Rotary actuator fail-safe (ZoneTight) NC, 1 Nm, AC/DC 24 V, Open/close, 75 s, IP40
CQK24A-SR
DR230A-5
Rotary actuator, Max. 90 Nm (not constant), AC 100...240 V, Open/close, 150 s, IP54, F05
DR230A-7
Rotary actuator, Max. 90 Nm (not constant), AC 100...240 V, Open/close, 150 s, IP54, F07
DR230G-T-
DR230G-T-7
Rotary actuator, Max. 90 Nm (not constant), AC 230 V, Open/close, 150 s, IP66/67, F07, Terminals
DR24A-5
DR24A-7
DR24A-MP-5
DR24A-MP-7
Rotary actuator, Max. 90 Nm (not constant), AC/DC 24 V, MP-Bus, 150 s (75...290 s), IP54, F07
DR24A-SR-5
DR24A-SR-7
Rotary actuator, Max. 90 Nm (not constant), AC/DC 24 V, 2...10 V, 150 s, IP54, F07
DR24G-MF-T-5
DR24G-MF-T-7
Rotary actuator, Max. 90 Nm (not constant), AC/DC 24 V, MFT, 2...10 V, 150 s, IP66/67, F07, Terminals
DR24G-T-5
DR24G-T-7
Rotary actuator, Max. 90 Nm (not constant), AC/DC 24 V, Open/close, 150 s, IP66/67, F07, Terminals
DRC230A-5
DRC230A-7
Rotary actuator, Max. 90 Nm (not constant), AC 100...240 V, Open/close, 35 s, IP54, F07
DRC230G-5
DRC230G-7
Rotary actuator, Max. 90 Nm (not constant), AC 100...240 V, Open/close, 35 s, IP66/67, F07
DRC24A-5
DRC24A-7
Rotary actuator, Max. 90 Nm (not constant), AC/DC 24 V, Open/close, 35 s, IP54, F07
DRC24G-5
DRC24G-7
Rotary actuator, Max. 90 Nm (not constant), AC/DC 24 V, Open/close, 35 s, IP66/67, F07
DRC24G-MF-T-5
DRC24G-MF-T-7
Rotary actuator, Max. 90 Nm (not constant), AC/DC 24 V, MFT, 2...10 V, 35 s, IP66/67, F07, Terminals
DRK24A-5
DRK24A-7
Rotary actuator fail-safe NC / NO, Max. 90 Nm (not constant), AC/DC 24 V, Open/close, 150 s, IP54, F07
EV230A-TPC
EV24A-MP-TPC
Globe valve actuator, 2500 N, AC/DC 24 V, MP-Bus, 150 s (90...150 s), Stroke 40 mm, IP54, Terminals with cable
EV24A-SZ-TPC
EV24A-TPC
Globe valve actuator, 2500 N, AC/DC 24 V, Open/close, 3-point, 150 s, Stroke 40 mm, IP54, Terminals with cable
EVK230A-3
EVK24A-3-TPC
EVK24A-MP-TPC
GR230A-5
Rotary actuator, 40 Nm, AC 100...240 V, Open/close, 150 s, IP54, F05
GR230A-7
Rotary actuator, 40 Nm, AC 100...240 V, Open/close, 150 s, IP54, F07
GR230G-T-5
GR24A-5
Rotary actuator, 40 Nm, AC/DC 24 V, Open/close, 150 s, IP54, F05
GR24A-7
GR24A-MOD-5
Rotary actuator, 40 Nm, AC/DC 24 V, BACnet MS/TP, Modbus RTU, MP-Bus, 90 s (75...270 s), IP54, F05
GR24A-MOD-7
GR24A-SR-5
Rotary actuator, 40 Nm, AC/DC 24 V, 2...10 V, 150 s, IP54, F05
GR24A-SR-7
Rotary actuator, 40 Nm, AC/DC 24 V, 2...10 V, 150 s, IP54, F07
GR24G-MF-T-5
GR24G-T-5
Rotary actuator, 40 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, IP66/67, F05, Terminals
GRC230A-5
GRC230G-5
Rotary actuator, 40 Nm, AC 100...240 V, Open/close, 35 s, IP66/67, F05
GRC230G-SR-TP-5
GRC24A-5
GRC24G-5
Rotary actuator, 40 Nm, AC/DC 24 V, Open/close, 35 s, IP66/67, F05
GRC24G-MF-T-5
Rotary actuator, 40 Nm, AC/DC 24 V, MFT, 2...10 V, 35 s, IP66/67, F05, Terminals
GRC24G-SZ-T-5
GRK24A-5
Rotary actuator fail-safe NC / NO, 40 Nm, AC/DC 24 V, Open/close, 150 s, IP54, F05
GRK24A-7
GRK24A-MF-5
Rotary actuator fail-safe NC / NO, 40 Nm, AC/DC 24 V, MFT, 2...10 V, 150 s, IP54, F05
GRK24A-MF-7
Rotary actuator fail-safe NC / NO, 40 Nm, AC/DC 24 V, MFT, 2...10 V, 150 s, IP4, F07
LFH230-S
LFH24-S
LFH24-SR-S
LR230A
LR230A-S
LR24A
L24A-S
LR24A-SR
Rotary actuator, 5 Nm, AC/DC 24 V, 2...10 V, 90 s, IP54
LRF230
Rotary actuator fail-safe NC, 4 Nm, AC 230 V, Open/close, 75 s, IP54
LRF230-S
LRF24
LRF24-S
LRF24-SR
Rotary actuator fail-safe NC, 4 Nm, AC/DC 24 V, 2...10 V, 150 s, IP54
LRQ24A
Very fast running rotary actuator, 4 Nm, AC/DC 24 V, Open/close, 9 s, IP54
LVK230A-3
LVK24A-3-TPC
LVK24A-MP-TPC
Globe valve actuator fail-safe NC / NO, 500 N, AC/DC 24 V, MP-Bus, 150 s (90...150 s), Stroke 15 mm, IP54, Terminals with cable
LVK24AX-SR-TPC
Globe valve actuator fail-safe NC / NO, 500 N, AC/DC 24 V, 2...10 V, 150 s, Stroke 15 mm, IP54, Terminals with cable
NR230A
Rotary actuator, 10 Nm, AC 100...240 V, Open/close, 3-point, 90 s, IP54
NR230A-S
NR24A
Rotary actuator, 10 Nm, AC/DC 24 V, Open/close, 3-point, 90 s, IP54
NR24A-S
NR24A-SR
NRF4A-SR
NRFA-S2
Rotary actuator fail-safe NC, 10 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, 2 x SPDT, IP54
NRQ24A
Very fast running rotary actuator, 8 Nm, AC/DC 24 V, Open/close, 9 s, IP54
NV230A-TPC
NV24A-MP-TPC
NV24A-SZ-TPC
NV24A-TPC
NVK230A-3
NVK24A-3-TPC
NVK24A-MP-TPC
PRCA-BAC-S2-T
PRCA-BAC-S2-T-200
PRCA-BAC-S2-T-250
PRCA-S2-T
PRCA-S2-T-200
PRCA-S2-T-250
PRKCA-BAC-S2-T
Rotary actuator fail-safe NC / NO, 160 Nm, AC 24...240 V / DC 24...125 V, BACnet MS/TP, Modbus RTU, MP-Bus, 35 s (30...120 s), 2 x SPDT, IP66/67, F07 (F05/F10 only with accessory), Terminals
PRKCA-BAC-S2-T-200
Rotary actuator fail-safe NC / NO, 160 Nm (parametrised for D6200W/WL), AC 24...240 V / DC 24...125 V, BACnet MS/TP, Modbus RTU, MP-Bus, 35 s (30...120 s), 2 x SPDT, IP66/67, Terminals
PRKCA-BAC-S2-T-250
RV24A-MF
Globe valve actuator, 4500 N, AC/DC 24 V, MFT, 2...10 V, 150 s, Stroke 50 mm, IP54
RV24A-SZ
Globe valve actuator, 4500 N, AC/DC 24 V, 0.5...10 V, 150 s, Stroke 50 mm, IP54
SR230A
Rotary actuator, 20 Nm, AC 100...240 V, Open/close, 3-point, 90 s, IP54
SR230A-5
Rotary actuator, 20 Nm, AC 100...240 V, Open/close, 3-point, 90 s, IP54, F05
SR230A-S
Rotary actuator, 20 Nm, AC 100...240 V, Open/close, 3-point, 90 s, 1 x SPDT, IP54
SR230A-S-5
SR230A-SR-5
Rotary actuator, 20 Nm, AC 100...240 V, 2...10 V, 90 s, IP54, F05
SR230P-5
SR24A
Rotary actuator, 20 Nm, AC/DC 24 V, Open/close, 3-point, 90 s, IP54
SR24A-5
SR24A-MOD-5
SR24A-S
Rotary actuator, 20 Nm, AC/DC 24 V, Open/close, 3-point, 90 s, 1 x SPDT, IP54
SR24A-S-5
Rotary actuator, 20 Nm, AC/DC 24 V, Open/close, 3-point, 90 s, 1 x SPDT, IP54, F05
SR24A-SR
Rotary actuator, 20 Nm, AC/DC 24 V, 2...10 V, 90 s, IP54
SR24P-5
Rotary actuator (RobustLine), 20 Nm, AC/DC 24 V, Open/close, 3-point, 90 s, IP66/67, F05
SR24P-SR-5
Rotary actuator (RobustLine), 20 Nm, AC/DC 24 V, 2...10 V, 90 s, IP66/67, F05
SRC24A-SR-5
Rotary actuator, 20 Nm, AC/DC 24 V, 2...10 V, 35 s, IP54, F05
SRF24A-5
Rotary actuator fail-safe NC, 20 Nm, AC/DC 24 V, Open/close, 75 s, IP54, F05
SRF24A-S2-5
Rotary actuator fail-safe NC, 20 Nm, AC/DC 24 V, Open/close, 75 s, 2 x SPDT, IP54, F05
SRF24A-SR
SRF24A-SR-5
Rotary actuator fail-safe NC, 20 Nm, AC/DC 24 V, 2...10 V, 90 s, IP54, F05
SRF24A-SR-S2-5
Rotary actuator fail-safe NC, 20 Nm, AC/DC 24 V, 2...10 V, 90 s, 2 x SPDT, IP54, F05
SRFA
Rotary actuator fail-safe NC, 20 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, IP54
SRFA-5
Rotary actuator fail-safe NC, 20 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, IP54, F05
SRFA-S2
SRFA-S2-5
SRQ24A-SR
Very fast running rotary actuator, 16 Nm, AC/DC 24 V, 2...10 V, 9 s, IP54
SV230A-TPC
SV24A-MP-TPC
SY9-230A-MF-T
Rotary actuator, 2000 Nm, AC 230 V, MFT, 2...10 V, 61 s, 2 x SPDT, IP67, F16, Terminals
TQF230
TQF24
Rotary actuator fail-safe NC, 2.5 Nm, AC/DC 24 V, Open/close, 75 s, IP42
TR230-3
Rotary actuator, 2 Nm, AC 230 V, 3-point, 105 s, IP40
TR24
Rotary actuator, 2 Nm, AC/DC 24 V, Open/close, 3-point, 100 s, IP40
TR24-SR
TRF230
TRF230-S
TRF24
TRF24-2
TRF24-S
TRF24-SR
Belimo as a global market leader develops innovative solutions for
the controlling of heating, ventilation and air-conditioning systems.
Actuators, valves and sensors represent our core business.
Always focusing on customer added value, we deliver more than
only products. We offer you the complete product range for the
regulation and control of HVAC systems from a single source. At the
same time, we rely on tested Swiss quality with a five-year warranty.
Our worldwide representatives in over 80 countries guarantee short
delivery times and comprehensive support through the entire
product life. Belimo does indeed include everything.
The “small” Belimo devices have a big impact on comfort, energy
efficiency, safety, installation and maintenance.
In short: Small devices, big impact.
- BELIMO SM24A-SR ,SM24A-SR
- BELIMO, NR230A
- BELIMO, NR230A-S
- BELIMO, LR230A-S
- BELIMO SM24A-SR
|
Pneutecshop ตัวแทนจำหน่าย วาล์วอุตสาหกรรม อุปกรณ์นิวเมติกส์
ธ.กสิกรไทย
