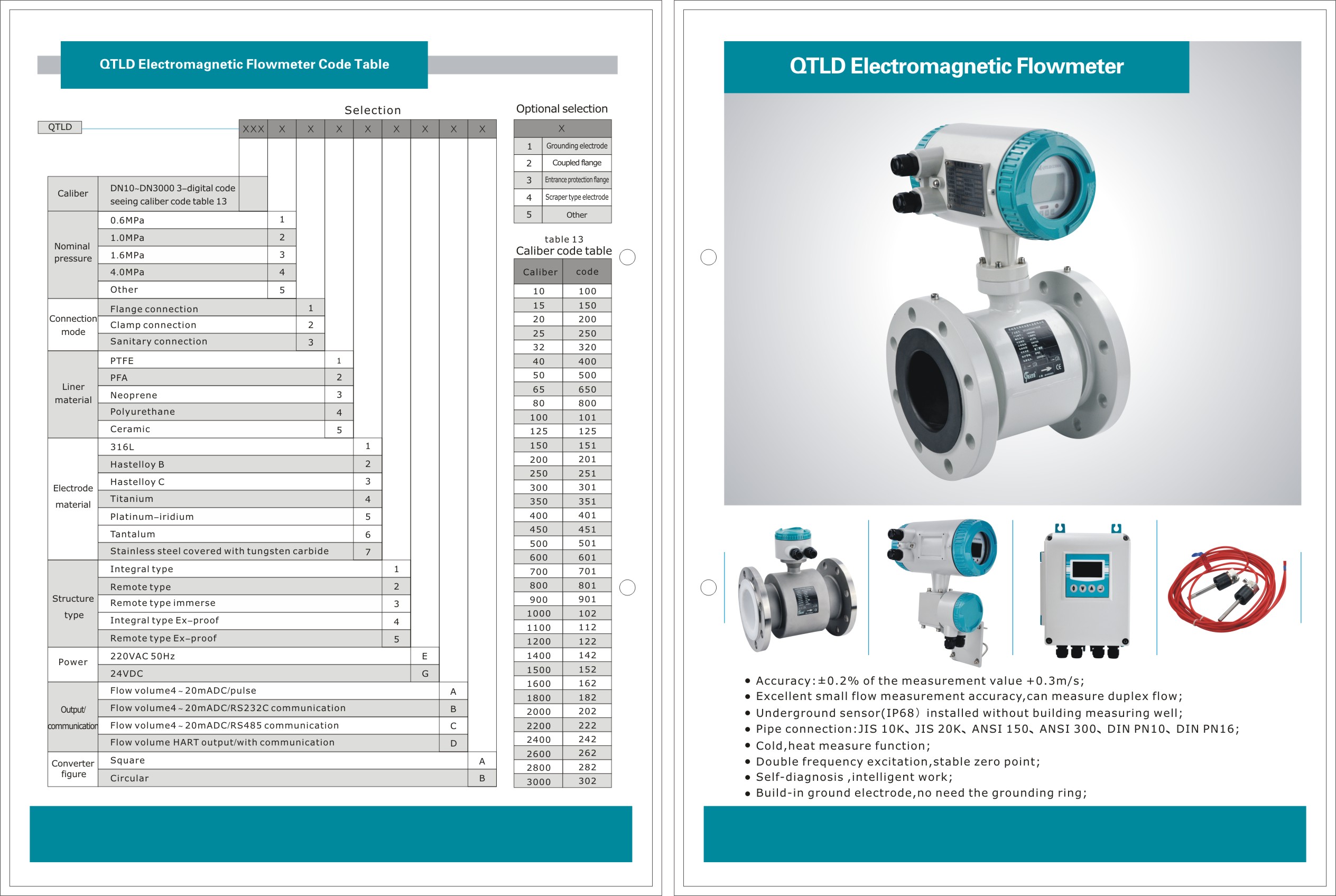

ELECTROMAGNETIC FLOW METER

Electromagnetic (อุปกรณ์วัดอัตราการไหลแบบสนามแม่เหล็ก) Flow meter

Features

• Size : DN3 ~ DN3000mm
• Accuracy : ±5%,± 0.3% are selectable
• Flow velocity : 0.1 ~ 15m/s
• Media temperature : -20 ~ +160
• Ambient temperature : -25 ~ 60
• Housing material : carbon steel(stainless steel optional) DN3 ~ DN3000mm
• Flange : carbon steel (galvanized or coating), stainless steel optional
• Electrode with shielding case, signal stable
• Electrode material:SUS316,Hastelloy C,Titanium,Tantalum etc
• Electrode type: General type,scraper type and replaceable type
• Liner material:Teflon,PFA,F46,Neoprene,Polyurethan
• Protection class : IP67, IP68 (optional)
• Power supply : 220VAC, 24VDC ,3.6V(battery powered)
• Communication:RS232,RS485 or HART are selectable
• Flow output : Analog output,frequency output,pulse output
• Control output : forward / reverse, high alarm / low alarm etc.
• Control input : external zero return, external totalizer reset, external totalizer stop
• Pulse output : active / passive, frequency and pulse width adjustable
• Test and diagnosis : self - diagnosis, failure record, current output test, control input / output

       test, emulation test mode etc.

• Others : parameter protection, indication of sensor parameter, span adjustment, zero adjust,

       small signal cutting, smoothing, access to external memorizer, writing No. etc

Applications

• ระบบกรองน้ำอุตสาหกรรม (Water Filter)
• ระบบอาร์โอ Reverse Osmosis Systen (RO)
• ระบบน้ำอ่อน (Water Softener)
• ระบบน้ำเย็น Chiller
• Water abstraction
• Water purification and desalination , UV Sterillizers
• Drinking water treatment distribution networks
• Revenue metering or billing
• Leakage detection
• Irrigation
• Industry water
• Cooling water
• Wastewater
• Sewage and sludge
• Sea water
